5 Under-Desk Cable Tray Options Compared

The Five Cable Tray Types, As Hardware

Search "under-desk cable tray" and roughly 200 listings appear that look interchangeable. They are not. Under-desk cable organizers split into five distinct hardware categories: the wire mesh basket, the solid steel channel (J-channel or raceway), the cable spine or snake, the clamp-on rack, and the adhesive or velcro sleeve. Each differs in capacity, mounting method, material, footprint, and price. This is a product comparison of the trays themselves, not an installation walkthrough.

Standard under-desk trays run 15.8 to 31.5 inches (40 to 80 cm) long. Steel models weigh 1.5 to 3 lbs empty and hold 4.4 to 11 lbs (2 to 5 kg) of cabling and power strips. ABS plastic and neoprene models weigh under 1 lb and cap out around 3.3 lbs (1.5 kg). Screw-mount steel is the load leader; adhesive plastic is the light-duty end of the range.

1. Wire Mesh Basket Tray

The mesh basket is a powder-coated steel wire cage that screws to the desk underside, typically 16 to 25 inches long and 4 to 5 inches deep. The open grid holds the widest range of items: power strips, GaN chargers, USB hubs, and excess cable loops. The gaps between wires ventilate power bricks, which matters because a loaded surge protector can sit 15 to 20°F above ambient. VIVO and Scandinavian Hub sell steel baskets in the $15 to $30 band; the common 4-screw install takes about 10 minutes into wood or particle board. The tradeoff: the cage is visible from side angles and needs pilot holes.

• Material: powder-coated steel wire
• Capacity: 8 to 11 lbs, holds a full power strip
• Mount: 4 wood screws
• Price: $15 to $30

2. Solid Steel Channel (J-Channel / Raceway)

A solid channel is a closed or half-closed steel trough that runs the length of the desk back edge. Cables lie inside and stay hidden from the seated position and from side angles, a cleaner line than the mesh cage. Capacity is lower because the profile is narrow, usually 2 to 3 inches wide, and it will not swallow a full power strip. Self-adhesive raceway kits (like the 46-inch two-piece kit above) skip drilling entirely; screw-down steel versions from VIVO cost $18 to $28. Best suited to 3 to 6 cable setups where looks lead.

• Material: steel or aluminum, some ABS
• Capacity: low, 3 to 6 cables, no power strip
• Mount: screw or 3M adhesive
• Price: $15 to $28

3. Cable Spine / Snake

The cable spine (also sold as a cable snake or "sock") is a vertical, segmented plastic or fabric sleeve, 20 to 40 inches long, that gathers cables into a single flexible column running from the desk to the floor. It is not strictly an under-desk tray but competes for the same job on standing desks: the segmented ribs flex through the full 25-inch travel of a sit-stand frame without snagging. Stand Steady and other sit-stand brands bundle spines for $20 to $35. It stores no power strip and holds only the cables passing through it, but it is the cleanest solution for a height-adjustable desk.

• Material: flexible ABS segments or woven fabric
• Capacity: medium, cables only, no strip
• Mount: bracket top and bottom
• Price: $20 to $35

4. Clamp-On Tray

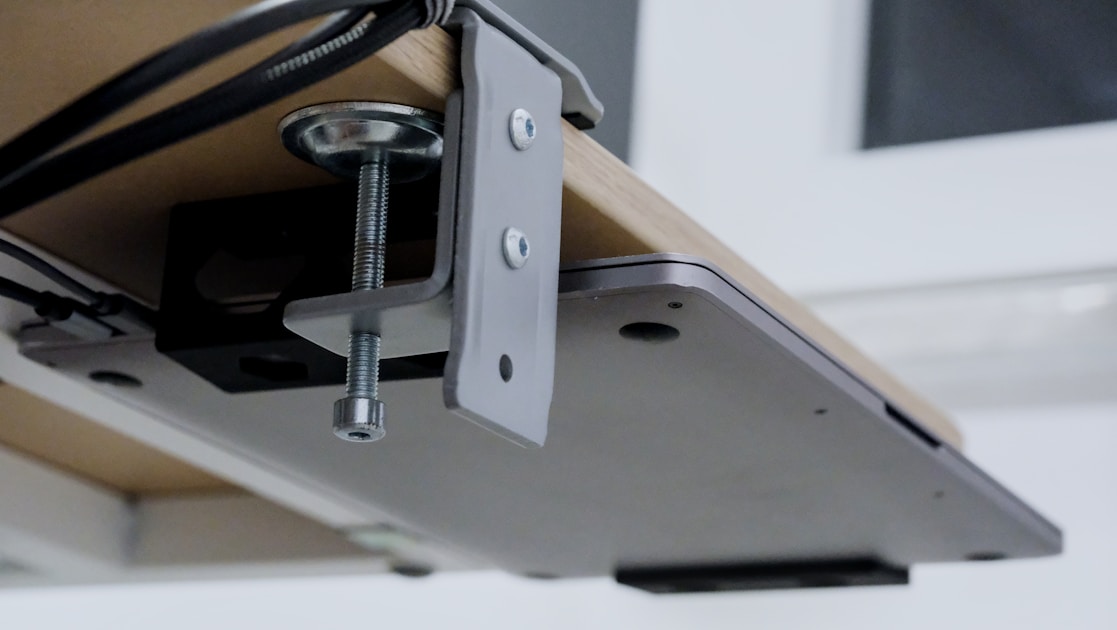

The clamp-on tray grips the desk edge with a screw clamp, so it needs no drilling and no adhesive and comes off in seconds. That makes it the renter and IKEA-desk favorite. Clamps fit edge thicknesses from about 0.6 to 2 inches. The visible clamp hardware is the cost, and a clamp can collide with a monitor-arm clamp competing for the same rear edge. Deep clamp-on baskets carry 4 to 7 lbs. Expect $18 to $30.

• Material: steel basket, steel or nylon clamp
• Capacity: medium to high, 4 to 7 lbs
• Mount: screw clamp, no drilling
• Price: $18 to $30

5. Adhesive / Velcro Sleeve

The lightest category mounts with 3M VHB tape or velcro strips to the desk underside. Adhesive trays and neoprene sleeves work on glass desks and anywhere holes are off-limits, and they leave no visible hardware. The weight ceiling is the catch, near 5 lbs for VHB and 2 to 3 lbs for velcro, and heat plus textured particle board makes the tape let go within weeks. Prices run $8 to $18, the cheapest way in.

• Material: ABS tray or neoprene sleeve
• Capacity: low, 2 to 5 lbs
• Mount: 3M VHB tape or velcro
• Price: $8 to $18

Spec Comparison at a Glance

Matching Desk Material to Mount

The desk surface narrows the field before capacity does. Glass and laminate under-surfaces reject screws, leaving adhesive or clamp-on. Solid wood and 18 mm particle board take screws cleanly and unlock the mesh basket. Thin veneer over MDF strips out under repeated screw loads, so a clamp-on tray spreads the force better there. Standing desks add a constraint: the tray must clear the frame legs and crossbar through full travel, which favors a spine or a basket mounted forward of the lifting columns.

• Glass desk: adhesive tray or clamp-on only
• Solid wood / thick particle board: screw-mount mesh basket
• Thin veneer / MDF: clamp-on to spread load
• Sit-stand frame: cable spine or forward-mounted basket

Length, Access, and Reconfiguration

Tray length should track desk width, not exceed it. A common sizing rule is a tray spanning 50 to 70% of the desk width: a 47 inch (120 cm) desk pairs with a 24 inch (60 cm) basket, a 55 to 63 inch desk with a 31 inch (80 cm) run or two 15.8 inch raceway pieces butted together. Overshooting the width leaves the tray poking past the desk edge where a knee finds it.

Access ranks differently by type, and it matters because most people rewire a desk 2 to 4 times a year as gear changes. The open mesh basket ranks first: cables drop in from the top with no disassembly. The clamp-on tray is close behind. The cable spine sits mid-pack because adding a cable means feeding it through the full 20 to 40 inch column. Solid J-channels and taped raceways rank last, since a snap-on lid or adhesive run has to be reopened along its length to add a single cable. If your peripherals rotate often, weight access over the cleanest possible line.

Which Type Wins

For a loaded desk with a power strip and 8 or more cables, the screw-mount steel mesh basket ($15 to $30) is the capacity and value leader. For a minimal 3 to 6 cable desk led by looks, a solid J-channel or adhesive raceway hides everything for $15 to $28. For a height-adjustable standing desk, the cable spine ($20 to $35) is the only type built for the vertical travel. Renters who cannot drill default to clamp-on ($18 to $30), and glass-desk owners to the adhesive sleeve ($8 to $18).

Before buying, size the load against your actual cable count and desk edge. Map your ports, cables, and power bricks with the Cable Management Planner to land on the right tray type and length the first time.
